| Description | The Ctec conventional fire alarm panel is LPCB certified to the latest revisions of EN54 parts 2 and 4, offers an array of user and installer-friendly features at a very competitive price. |
- A high-quality optical smoke detector offering outstanding detection performance at a very competitive price.
- Manufactured by C-TEC in the UK.
- Third-party certified to EN54-7 by Intertek.
- Wide 6-33V DC operating voltage.
- Two 8mm x 2mm ultra-bright red LED indicating strips offering 360º visibility.
- Drift compensation functionality ensures detector sensitivity is automatically calibrated to suit prevailing conditions and/or increased contamination levels allowing a greater than 8 year life-span.
- Compatible with our ActiV C4408D diode, C4408 non-diode and C4408R relay bases.
| Using a Kentec Alarmsense Panel with Apollo field devices, this system is ideal for installing conventional systems where sounders and detectors must be on the same 2-core cable. | The FireSmart 4 zone, Conventional fire alarm kits, contain all you need to get an installation underway in one complete package. |
- Third-party certified to EN54-5 by Intertek
- Carries the pan-European ‘CertAlarm’ mark
- Wide 6-33V DC operating voltage
- Two 8mm x 2mm ultra-bright red LED indicating strips offering 360º visibility
- Sophisticated onboard detection algorithms help reduce false alarms by rejecting momentary abnormal readings.
- Compatible with our ActiV C4408D diode, C4408 non-diode and C4408R relay bases (all bases include an integrated detector/base locking mechanism and ID tag)
- Class A2 fixed heat, class B fixed heat, and optical and multi-sensor variants are also available
| The FireSmart 2 zone Conventional fire alarm kits contain all you need to get an installation underway in one complete package. Choose additional devices from the options box to speed up the ordering process. |

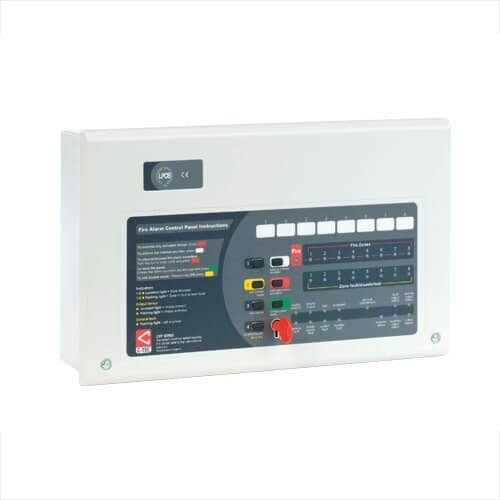

| Content | The C-Tech conventional fire alarm panel is LPCB certified to the latest revisions of EN54 parts 2 and 4, and offers an array of user and installer-friendly features at a very competitive price.
Supplied in an attractive flush or surface mountable plastic enclosure, four and 8-zone versions are available, each featuring four conventional sounder circuits, class change and alert inputs, onboard fire and fault relays and combined keypad/key switch entry.
Various engineering functions are also provided, including selectable zone delays, coincidence and non-latching zone options. Comprehensive test and fault-finding facilities are also provided.
Features
- C-Tech
- LPCB Certified To The Latest Versions Of EN54 Parts 2 And 42
- up to 8 Zone Circuits
- 4 Conventional Sounder Circuits
- Two On-Board Relays (Fire And Fault)
- Integral 1.5A EN54-4/A2 Compliant Switch Mode PSU
- 'Class Change' And Alert Inputs
- Low Quiescent Current
- Multiple Indicators
- Space For 2 x 12V 3.2Ah SLA Batteries
| ActiV Conventional Optical Smoke Detector
The C4416 Optical Smoke Detector uses an infrared light source and a photodiode to detect smoke. Light passes in front of the photodiode in a straight line in the absence of smoke. When smoke enters the optical chamber across the path of the infrared beam, light is scattered by particles of smoke in all directions, some of which fall on the photodiode, thus triggering the alarm. Optical detectors are typically used in escape routes, living areas, bedrooms and enclosed spaces to give an early indication of fire. They are particularly effective at detecting slow-burning fires (such as those caused by overheated electrical wiring or smouldering materials), which tend to generate larger particles of visible smoke. | The Kentec 4 Zone Alarmsense Bi-Wire Fire Alarm Kit contains all you need to install in one package. Using a Kentec Alarmsense Panel with Apollo field devices, this system is ideal for installing conventional systems where sounders and detectors must be on the same 2-core cable. Combined detectors and sounders provide a discreet installation while ensuring adequate sound levels throughout the building.
Choose additional devices from the options box to speed up the ordering process.
Contents
- Kentec KA11040M2 4 Zone Alarmsense Bi-Wire Fire Alarm Panel: Incorporating a "Selectable local alarm" feature, this alarm panel is particularly useful in Houses of Multiple Occupation such as student accommodation or nursing homes.
- Apollo 55000-392APO AlarmSense Optical Smoke Detector with Sounder Base: This detector changes to an alarm state at a pre-set threshold of smoke penetration into the sensing chamber. Comes with a sounder base, providing audible signal and detection.
- Apollo 55000-196APO AlarmSense A1R Standard Heat Detector with Sounder Base: A detector with a fixed upper-temperature limit of 57°C but in addition will detect sudden increases in temperature of 12-15°C per minute. Comes with a sounder base, providing audible signal and detection.
- Apollo 55400-894APO AlarmSense Manual Call Point: A Manual Call Point that uses push button operation and features a redesigned reset mechanism.
- 12vdc 3.2Ah Backup Batteries: 12v 3.2Ah batteries are specifically designed for use throughout the fire and security industries.
| The FireSmart 4 zone Conventional fire alarm kits contain all you need to get an installation underway in one complete package. Using the leading FireSmart range of products, this kit provides a simple, quick solution to protecting your premises.
Choose additional devices from the options box to speed up the ordering process.
- 4 Zone FireSmart Conventional Panel: A premium system from a market-leading manufacturer, the control panel provides a highly cost-effective conventional option for building premises.
- FireSmart Optical Smoke Detector: A state-of-the-art optical chamber combined with an application-specific integrated circuit (ASIC) to provide quick and accurate detection of fires.
- FireSmart Rate-of-Rise Heat Detector: The Heat Detector uses a state-of-the-art heat element combined with an application-specific integrated circuit (ASIC) to quickly and accurately detect fires.
- FireSmart Diode Base: Diode base for use with the FireSmart range of detectors.
- FireSmart Conventional Manual Call Point: An easy-to-operate fire alarm manual call point. Fully compliant with EN 54-11, each point is manufactured from impact-resistant ABS and includes a resettable press to break the glass.
- FireSmart Sounder & Deep Base (Red): Provides outstanding sound output and low current draw. Specifically designed and approved to meet EN54-3, the Firesmart sounder delivers quality, reliability and extended operational life.
- FireSmart 12vdc 3.4Ah Backup Batteries: 12v 3.4Ah batteries are specifically designed for use throughout the fire and security industries.
| C4403A1R Rate of Rise Heat Detector - Class A1R
The C4403A1R is a high-performance rate-of-rise heat detector designed to ensure the safety of a protected area. It is classified as Class A1R, which means it responds to both sudden temperature increases and static temperatures within a specific range.
When the C4403A1R detects a sudden temperature rise within the protected area, it promptly triggers an alarm. Additionally, it can detect a static temperature between 54ºC and 65ºC and generate an alarm in such situations.
C4403A2 Fixed Temperature Heat Detector - Class A2 Standard (60°C)
The C4403A2 is a reliable fixed-temperature heat detector designed to meet the standards set for Class A2 devices. It is specifically calibrated to respond when the temperature within the protected area reaches a specific threshold.
As a Class A2 heat detector, the C4403A2 is programmed to trigger an alarm if the temperature within the protected area rises between 54ºC and 65ºC. This ensures that potential fire hazards are detected and addressed promptly, enhancing the environment's safety.
C4403B Fixed Temperature Heat Detector - Class B High (75°C)
The C4403B is a robust fixed-temperature heat detector that falls under the classification of Class B, offering a higher temperature range for detection. This makes it suitable for environments where higher temperatures are expected or typical.
With a temperature range of 69ºC to 85ºC, the C4403B is designed to generate an alarm condition when the temperature within the protected area exceeds these thresholds. Doing so provides early warning signs of potential fire incidents and allows for immediate action to be taken to mitigate risks.
These advanced heat detectors, including the C4403A1R, C4403A2, and C4403B, are equipped with cutting-edge technology to ensure accurate and timely detection of temperature changes. Their robust design and reliable performance make them vital components in fire safety systems, providing enhanced protection and peace of mind in various environments. | The FireSmart 2 zone Conventional fire alarm kits contain all you need to get an installation underway in one complete package. Choose additional devices from the options box to speed up the ordering process.
Using the leading FireSmart range of products, this kit provides a simple, quick solution to protecting your premises.
- 2 Zone FireSmart Conventional Panel: A premium system from a market-leading manufacturer, the control panel provides a highly cost-effective conventional option for building premises.
- FireSmart Optical Smoke Detector: A state-of-the-art optical chamber with an application-specific integrated circuit (ASIC) to detect fires quickly and accurately.
- FireSmart Rate-of-Rise Heat Detector: The Heat Detector uses a state-of-the-art heat element combined with an application-specific integrated circuit (ASIC) to quickly and accurately detect fires.
- FireSmart Diode Base: Diode base for use with the FireSmart range of detectors.
- FireSmart Conventional Manual Call Point: An easy-to-operate fire alarm manual call point. Fully compliant with EN 54-11, each point is manufactured from impact-resistant ABS and includes a resettable press to break the glass.
- FireSmart Sounder & Deep Base (Red): Provides outstanding sound output and low current draw. Specifically designed and approved to meet EN54-3, the Firesmart sounder delivers quality, reliability and extended operational life.
- FireSmart 12vdc 2.2Ah Backup Batteries: 12v 2.2Ah batteries are specifically designed for use throughout the fire and security industries.
|
