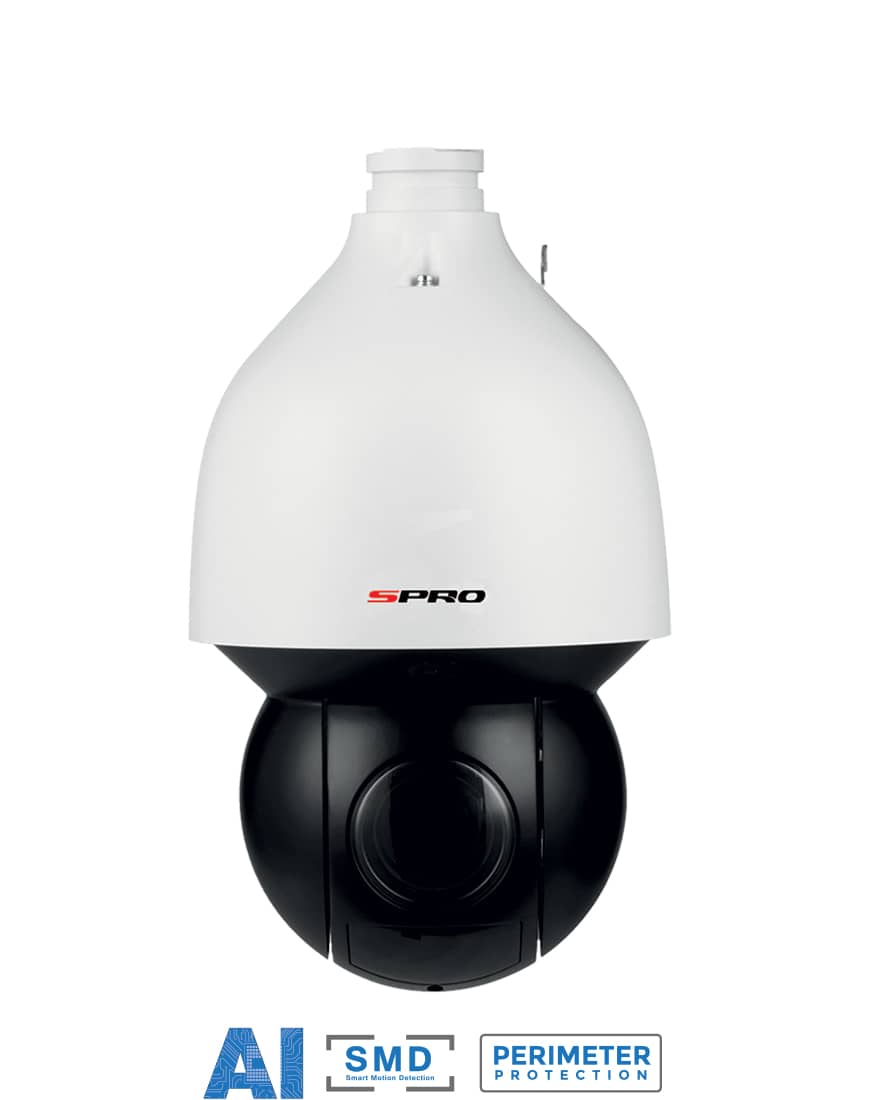

This SPRO PTZ’s AI Pro technology allows the camera to use human and vehicle classification to ensure that only genuine threats trigger alarms and notifications.
Specifications: | |
Model Number | DHIPPTZ20/25XR-AI-V2 |
Image Sensor | 1/2.8" CMOS |
Effective Pixels | 1920(H) x 1080(V) |
ROM | 4 GB |
RAM | 1 GB |
Electronic Shutter Speed | 1/1 ~ 1/30,000s |
Scanning System | Progressive |
Min. Illumination | Colour: 0.005 Lux@F1.6 |
B/W: 0.0005 Lux@F1.6 | |
0 Lux (IR light on) | |
Illumination Distance | 150 m (492.13 ft) |
Illuminator On/Off Control | Zoom Prio / Manual / Off |
Illuminator Number | 4 (IR) |
Lens | |
Focal Length | 4.8 mm – 120 mm |
Max Aperture | F1.6 – F3.5 |
Field of View | H: 58.5°–2.8°; V: 33.2°–1.5°; D: 67.5°–3.2° |
Optical Zoom | 25x |
Focus Control | Auto/ Semi-Auto/ Manual |
Close Focus Distance | 0.1 m–1.5 m (0.33 ft–4.92 ft) |
Iris Control | Auto / Manual |
DORI Distance | Detect: 1614m; Observe: 646m; Recognize: 323m; Identify: 161m |
PTZ | |
Pan/Tilt/Rotation | Pan: 0° to 360° endless; Tilt: –15° to +90°, auto flip 180° |
Manual Control Speed | Pan: 0.1°/s–300°/s; Tilt: 0.1°/s–200°/s |
Preset Speed | Pan: 400°/s; Tilt: 300°/s |
Presets | 300 |
Tour | 8 (up to 32 presets per tour) |
Pattern | 5 |
Scan | 5 |
Power-off Memory | Yes |
Idle Motion | Preset/ Tour/ Pattern / Scanning |
Protocol | DH-SD, Pelco-P/D (auto recognition) |
General Intelligence | |
IVS | Tripwire; intrusion; climbing fences; loitering detection; |
abandoned/missing object; fast moving; parking detection; | |
people gathering; vehicle/human alarm classification. | |
Auto Tracking | Yes |
Quick Pick | With AI NVR, quickly pick up the human/vehicle targets that users are |
interested in from SMD events. | |
SMD | Yes |
Face Detection | Supports face detection, face bounding box, capturing snapshots, |
uploading face snapshots, enhancing face images, and selecting | |
a preferred image among a group of snapshots. Attribute Extraction | |
is also supported, where 6 attributes and 8 expressions can be | |
detected. The attributes are gender, age, glasses, mask, mustache | |
and expressions. The expressions are angry, sad, hate, scared, surprised, | |
calm, happy and confused. Face cutout is also offered, | |
where you can cutout one face at a time and customize the size to | |
be a one-inch photo. The supported methods for capturing | |
snapshots are real-time capturing, quality first, and selecting a | |
preferred image among a group of snapshots. | |
Video | |
Video Compression | Smart H.265+; H.265; Smart H.264+; H.264; H.264B; H.264H; |
MJPEG (Sub Stream 1) | |
Stream Capability | 3 streams |
Resolution | 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); |
D1 (704 × 576); CIF (352 × 288) | |
Video Frame Rate | Main stream: 1080p/1.3M/720p (1–25/30 fps) |
Sub stream 1: D1/CIF (1–25/30 fps) | |
Sub stream 2: 1080p/1.3M/720p (1–25/30 fps) | |
Bit Rate Control | CBR; VBR |
Video Bit Rate | H.264: 3kbps-8192kbps; H.265: 3kbps-8192kbps |
Day/Night | Auto (ICR); Colour; B/W |
BLC | Yes |
WDR | 120dB |
White Balance | Auto; indoor; outdoor; tracking; manual; sodium lamp; natural light; street lamp |
Gain Control | Auto; Manual |
Noise Reduction | 2D NR; 3D NR |
Motion Detection | Yes |
Region of Interest (RoI) | Yes |
Image Stabilization | Electronic (EIS) |
Defog | Electronic |
Digital Zoom | 16x |
Image Rotation | 180° |
Privacy Masking | Up to 24 areas can be set, with up to 8 areas in the same view. |
S/N Ratio | ≥55 dB |
Audio | |
Audio Compression | PCM; G.711a; G.711Mu; G.726; MPEG2-Layer2; G722.1; G729; G723 |
Network | |
Network Port | RJ-45 (10/100 Base-T) |
Network Protocol | HTTP; HTTPS; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; |
DDNS; IPv6; 802.1x; QoS; FTP; UPnP; ICMP; SNMP; | |
SNMP v1/v2c/v3 (MIB-2); IGMP; ARP; RTCP; RTP; | |
PPPoE; RTMP; TCP | |
Interoperability | ONVIF ( Profile S&G&T); CGI |
Streaming Method | Unicast; Multicast |
User / Host | 20 (Total bandwidth: 64M) |
Storage | FTP; Micro SD card (512 GB); N |
Browser | IE7 and later version |
Chrome 42 and earlier versions | |
Firefox 52 and earlier versions | |
Safari | |
Management Software | SPRO CSS |
Mobile Client | iOS; Android |
Certification | |
Certifications | CE: EN55032/EN55024/EN50130-4 |
FCC: Part15 subpartB, ANSI C63.4-2014 | |
UL: UL60950-1+CAN/CSA C22.2, No.60950-1 | |
Port | |
Alarm I/O | 02-Jan |
Audio I/O | 01-Jan |
Two-way Audio | Yes |
Alarm Linkage | Capture; preset; tour; pattern; recording; triggering on-off value output; audio; sending email. |
Alarm Event | Motion/tampering detection; audio detection; network disconnection detection; IP conflict detection; |
memory card state detection; memory space detection; power exception; detection | |
Power | |
Power Supply | 24 VDC, 2.5 A (± 25%) |
PoE +(802.3at) | |
Power Consumption | Basic: 13 W |
Max.: 22 W (illuminator + PTZ working) | |
Environment | |
Operating Temperature | –40 °C to +70 °C (–40 °F to +158 °F) |
Operating Humidity | ≤95% |
Protection | IP67; IK10; TVS 6000 V lightning proof; surge protection; |
voltage transient protection | |
Structure | |
Product Dimensions | 332 mm × Φ190 mm (13.07" × Φ7.48") |
Net Weight | 4.7 kg (10.36 lb) |
Gross Weight | 8kg (17.64 lb) |
