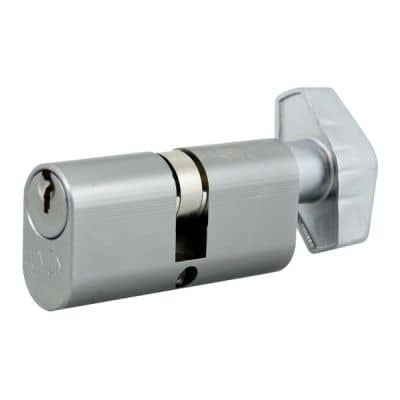

| Content | Union 2X13 oval thumbturn cylinder.
- 5 Pin
- Union branded
- Anti pick and anti drill
- 2 keys per lock
- Key Blank: UN-11
- Packaging: Boxed
| Symmetrical strike with long face plate to suit most sashlock-type nightlatch. Reversible for left and right handling.
Fitted with 'Bi-Coil' that can be fitted to either 12v AC 12v DC 24v AC or 24v DC systems.
Face Plate Width: 25mm
Face Plate Height: 250mm
Jaw Height: 47.6mm
Jaw Adjustable? Yes
Finish: Grey | The V06 electric lock is suitable for inside or outside manual or automatic doors pedestrian or drive through gates. It is supplied as standard with the ‘Service’ function: the lock opens with a single electric pulse and o nly resets once the door or gate has been opened and then closed. With the removal of an internal part can also have a ‘Security’ function: the lock opens only with a continuous electric impulse and manual or automatic pressure is applied simultaneously to open.
- Horizontal Position
- Galvanised Steel
- Replaceable Double Electric Coil
- Rotating Deadbolt
- Service & Security Function
- Standard 12V AC
- Key Override
- Euro Profile (Not Supplied
| The push bar rebated double door set includes two push bar units – one with vertical bolts and the other with latch, this provides three-point locking for added security without compromising on safety. Allowing fire exit doors to be opened quickly and easily by anyone in an emergency, you’ll find these in premises open to the public and workplaces installed on outward-opening final exit doors, whether you call them push bars, panic bars or crash bars.
For use on rebated doors, the latch and bolts are reversible for use on the left or right doors and conforming to BS EN 1125, as well as being CE marked, Certifire accredited, tested to withstand a minimum of 200,000 uses and comes with a 10-year manufacturer’s warranty, as standard. The silver Exidor 285 push bar rebated double door set is designed for doors made from timber or steel, each measuring up to 1220mm wide and 2440mm high, and is fire rated in accordance with EN 1634-1.
The panic bolt also has an anti-thrust mechanism to prevent unauthorised retraction of the bolts and is supplied with bolt sockets that are easy to clean. The push bar panic latch is supplied with an adapter that is suitable for use with outside access devices to enable entry from the other side of the door into your premises.
Easy to operate, all that’s needed is a push on the crossbar which is why it’s a requirement in all buildings with public access or where staff could be unfamiliar with the escape route. Exidor emergency exit hardware is manufactured in the UK to the highest quality.
Please Note: This product is not suitable for plastic or uPVC doors. | Good quality ANSI strike for aluminium doors.
Supplied with Flat face plate and extendable 25mm lip.
Includes monitor switch.
Face Plate Width: 31mm
Fac e Plate Height: 159mm
Jaw Height: 44mm
Jaw Adjustable? Yes
Finish: Stainless Steel | Slim profile electric bolt.
Can be reversed to operate Fail Secure or Fail Safe.
Lock and door status monitor switches.
Timer adjustable from 0 3 or 6 seconds.
;
Face Plate Size: 200mm x 27mm
Finish: Stainless Steel
Please note this is 12VDC ONLY |
