| Content |

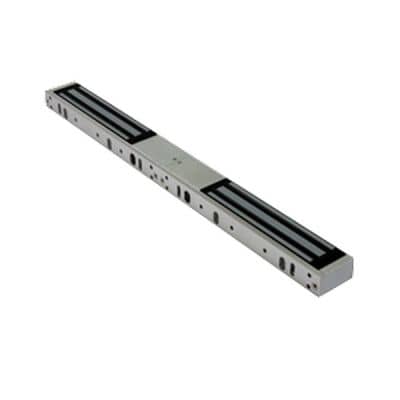

- Standard series mag lock
- Dual voltage 12v/24v
- Holding force up to 272kg
- Only for double doors
- Door Monitor Sensor
- Suitable for inward & outward opening doors
- Internal Use
- Size: (L)502 x (W)47 x (H)25
| The push bar rebated double door set includes two push bar units – one with vertical bolts and the other with latch, this provides three-point locking for added security without compromising on safety. Allowing fire exit doors to be opened quickly and easily by anyone in an emergency, you’ll find these in premises open to the public and workplaces installed on outward-opening final exit doors, whether you call them push bars, panic bars or crash bars.
For use on rebated doors, the latch and bolts are reversible for use on the left or right doors and conforming to BS EN 1125, as well as being CE marked, Certifire accredited, tested to withstand a minimum of 200,000 uses and comes with a 10-year manufacturer’s warranty, as standard. The silver Exidor 285 push bar rebated double door set is designed for doors made from timber or steel, each measuring up to 1220mm wide and 2440mm high, and is fire rated in accordance with EN 1634-1.
The panic bolt also has an anti-thrust mechanism to prevent unauthorised retraction of the bolts and is supplied with bolt sockets that are easy to clean. The push bar panic latch is supplied with an adapter that is suitable for use with outside access devices to enable entry from the other side of the door into your premises.
Easy to operate, all that’s needed is a push on the crossbar which is why it’s a requirement in all buildings with public access or where staff could be unfamiliar with the escape route. Exidor emergency exit hardware is manufactured in the UK to the highest quality.
Please Note: This product is not suitable for plastic or uPVC doors. | High quality extruded brass body.
Carbon nitrate hardened and chrome plated steel shackle.
Tumbler cylinder with pick proof system. | Slim profile electric bolt.
Can be reversed to operate Fail Secure or Fail Safe.
Lock and door status monitor switches.
Timer adjustable from 0 3 or 6 seconds.
;
Face Plate Size: 200mm x 27mm
Finish: Stainless Steel
Please note this is 12VDC ONLY | Good quality ANSI strike for aluminium doors.
Supplied with Flat face plate and extendable 25mm lip.
Includes monitor switch.
Face Plate Width: 31mm
Fac e Plate Height: 159mm
Jaw Height: 44mm
Jaw Adjustable? Yes
Finish: Stainless Steel | Sometimes known as a push bar or crash bar, the Exidor 296 panic latch is fitted to final exit doors and fire doors on escape routes to make doors easy to open in an emergency. With a reversible latch making this suitable for left and right-handed doors, the emergency bar fully conforms to BS EN 1125, is CE marked, Certifire accredited, tested to withstand a minimum of 200,000 uses and comes with a 10-year manufacturer’s warranty as standard.
The silver panic bar with latch is designed for single doors made from timber or steel up to 1220mm wide and is fire rated in accordance with EN 1634-1. Easy to operate, all that’s needed is a push on the crossbar, which is why it’s required in all buildings with public access or where staff could be unfamiliar with the escape route. Exidor emergency exit hardware is manufactured in the UK to the highest quality.
The push bar panic latch is supplied with an adapter suitable for use with outside access devices to enable entry from the other side of the door into your premises.
Please Note: This product is not suitable for plastic or uPVC doors. |
