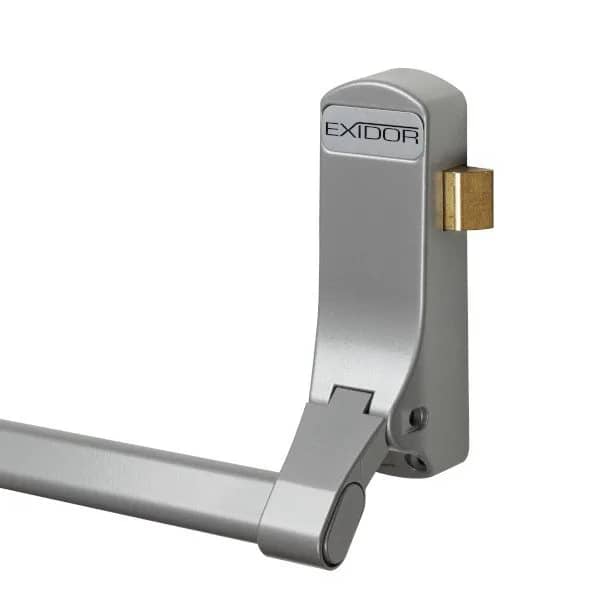

| Content | Sometimes known as a push bar or crash bar, the Exidor 296 panic latch is fitted to final exit doors and fire doors on escape routes to make doors easy to open in an emergency. With a reversible latch making this suitable for left and right-handed doors, the emergency bar fully conforms to BS EN 1125, is CE marked, Certifire accredited, tested to withstand a minimum of 200,000 uses and comes with a 10-year manufacturer’s warranty as standard.
The silver panic bar with latch is designed for single doors made from timber or steel up to 1220mm wide and is fire rated in accordance with EN 1634-1. Easy to operate, all that’s needed is a push on the crossbar, which is why it’s required in all buildings with public access or where staff could be unfamiliar with the escape route. Exidor emergency exit hardware is manufactured in the UK to the highest quality.
The push bar panic latch is supplied with an adapter suitable for use with outside access devices to enable entry from the other side of the door into your premises.
Please Note: This product is not suitable for plastic or uPVC doors. |
- Standard series mag lock
- Dual voltage 12v/24v
- Holding force up to 272kg
- Door Monitor Sensor
- Suitable for inward & outward opening doors
- Internal Use
- Size: (L)251 x (W)47 x (H)25
| Symmetrical strike with long face plate to suit most sashlock-type nightlatch. Reversible for left and right handling.
Fitted with 'Bi-Coil' that can be fitted to either 12v AC 12v DC 24v AC or 24v DC systems.
Face Plate Width: 25mm
Face Plate Height: 250mm
Jaw Height: 47.6mm
Jaw Adjustable? Yes
Finish: Grey | The Exidor 293 single door push pad emergency bolt is designed for final exit doors and allows for a quick exit in an emergency when used by trained personnel such as offices or schools. The vertical bolt locks at the top and bottom of the door and can be reversed for use on left or right-handed doors, with an anti-thrust mechanism that prevents leverage of both the top and bottom shoot bolts from their sockets.
Incorporated as standard is an automatic top trip and easy clean floor socket; the push pad with bolt fully conforms to EN179:2008, CE Marked and Certifire accredited, making it suitable for workplaces and public buildings. Designed for single doors made from timber or steel up to 1220mm wide and 2440mm high, it’s fire-rated in accordance with EN 1634-1 and manufactured in the UK to the highest quality.
Tested to withstand a minimum of 200,000 with a 10-year manufacturer’s warranty, the push pad bolt is easy to operate – push on the pad as you’re pushing the door open in an emergency – it’s perfect for an escape route. Exidor emergency exit hardware is manufactured in the UK to the highest quality and is suitable for use with an outside access device.
Please Note: This product is not suitable for plastic or uPVC doors. | Premium electric strike with dual voltage and current solenoid with 1080kg holding force
Robust stainless split jaw is adjustable and only requires half the force to open compared to 7100.
Face Plate Width: 32mm
Face Plate Height: 124mm
Jaw Height: 36mm
Jaw Adjustable? Yes
Finish: SAA |
- Standard series mag lock
- Dual voltage 12v/24v
- Holding force up to 272kg
- Only for double doors
- Door Monitor Sensor
- Suitable for inward & outward opening doors
- Internal Use
- Size: (L)502 x (W)47 x (H)25
|
