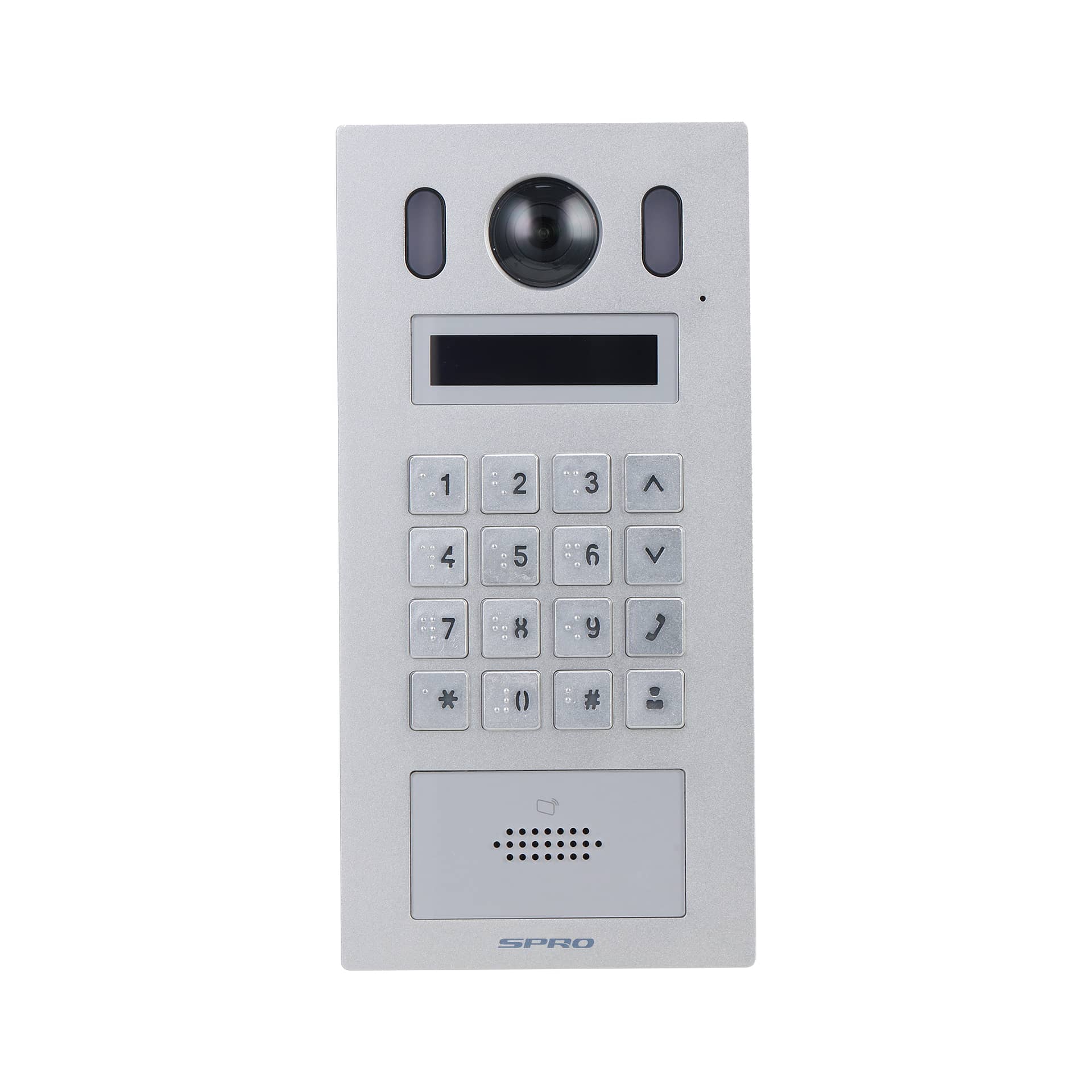

The VI-APT01 is the perfect outdoor intercom station to secure your apartment building. Featuring a 2mp CMOS camera, mechanical buttons with braille, and the ability to grant access with a password or mifare cards, the VI-APT01 provides the utmost security. As an added bonus, the intercom station also features supplemental lighting with its white light, to help you see who is at your front door even in the dark. With the VI-APT01, you can rest easy knowing that only authorised visitors can enter your apartment building.
Specifications: | |
Model Number | VI-APT01 |
Main Processor | Embedded Micro Processor |
Operating System | Embedded LINUX OS |
Video | |
Video Compression | H.264 |
Image Sensor | 1/2.9" 2MP CMOS" |
Auto Gain Control | White Light |
Lens | 2mm |
Angle of View | H:138°, V:78°, D:158° |
Day / Night | Color Image |
Audio | |
Audio Compression | G.711 |
Audio Input | Imnidirectional Mic |
Audio Output | Built-in Speaker |
Bidirectional Talk | Support Dual-way Bidirectional talk |
Display | |
Screen | 2.3" OLED |
Operation Mode | |
Keypad | Mechanical Button with Braille |
Reader | Mifare Card (13.56 MHz) |
Interface | |
Alarm In / Out | 01-Jan |
Door Control | |
1 Relay Out | |
1 RS485 | |
1 Feedback | |
1 Exit Button | |
Wiegand | 1 |
Network | |
Ethernet | 10M/100Mbps |
Network Protocol | TCP / IP |
General | |
Ingress Protection | IK08 |
IP65 (Apply silica gel to gaps between the device and the wall. Liquid sodium silicate is recommended) | |
Tamper Switch | 1 |
Installation | Surface & Flush |
Material | Aluminum |
Power | DC12V, POE (802.3af) |
Power Consumption | Work ≤6W |
Working Temperature | -40° to +60°C |
Relative Humidity | 20%RH - 95%RH |
Dimensions | 200mm x 98mm x 32mm |
Weight | 1.5KG |
