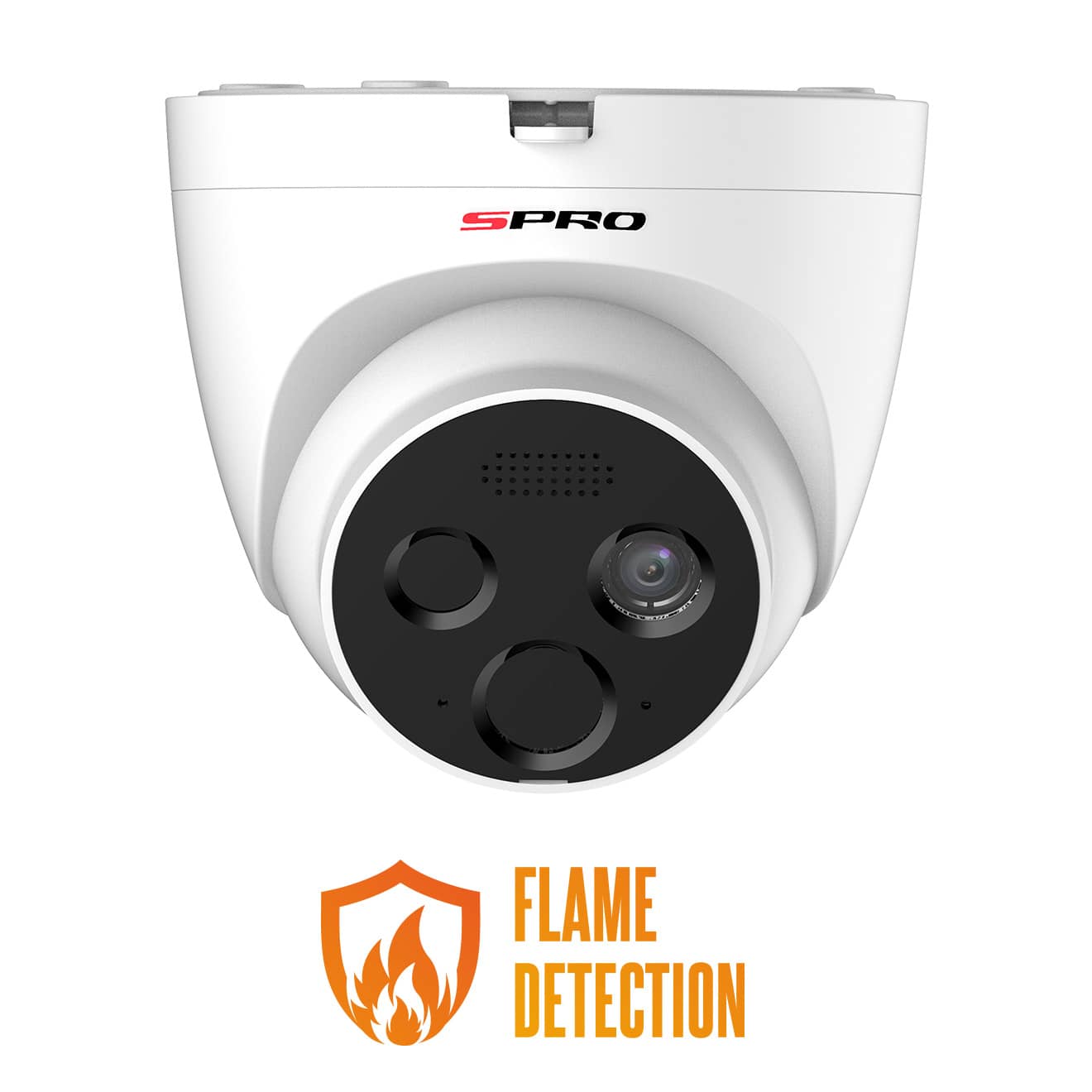

SPRO 2MP Flame Detection Camera (DHIPFD20/15R-T12L4)

Model: DHIPFD20/15R-T12L4
SKU: DHIPFD20/15R-T12L4
In Stock
£239.99
In Stock
Add to Wishlist
Add to Wishlist
Add to Wishlist
Add to Wishlist
Compare
EAN: 5090000052494 SKU: DHIPFD20/15R-T12L4 Categories: , , , , , ,

Description

The Flame Detection function on this camera will only work with either the DHIPNVR04-A6 or DHIPNVR08-A6.

Features:

  • 2 megapixel
  • 4mm visible focal length
  • 1.2mm thermal focal length
  • Up to 15m IR distance
  • Flame detection with adjustable sensitivity
  • Flame detection distance: 10m x 10m
  • Alarm siren
  • Tracking flame position
  • Alarm: 1 in & 1 out
  • 2-way audio
  • IP66 waterproof
  • DC 12V/POE
Specifications:
Model Number DHIPFD20/15R-T12L4
Thermal Lens
Detector Type Vanadium oxide uncooled focal plane detector
Effective Pixels 120 (H) × 90 (V)
Pixel Pitch 17 μm
Spectral Range 8 μm–14 μm
Sensitivity (NETD) < 60mK@f/1.0
Focal Length 1.2 mm
Close Focus Distance 0.4m 1.31 ft
Field of View Horizontal: 90°; Vertical: 67.5°
Thermal Focus Control Fixed-focal
Field of Depth >3 cm
Aperture F1.1
Flame Detection Distance 10m²: 10m x 10m
Visible Lens
Image Sensor 1/2.7" CMOS
Max. Resolution 1920 (H) × 1080 (V)
Pixel 2 MP
Min. Illumination Colour: 0.05 lux; B/W: 0.005 lux; 0 lux (IR on)
Visible AGC Auto; Manual
Visible Noise Reduction 2D NR; 3D NR
S/N Ration ≥ 55 dB
Electronic Shutter Speed 1 s–1/30,000 s (manual/auto)
BLC Yes
WDR DWDR
HLC Yes
Day/Night Auto (ICR); Colour and B/W
Iris Control Fixed
Image Flip 90°; 180°; 270°
Exposure Compensation Yes
Visible Focus Control Fixed-focal
Focal Length 4 mm
Field of View H: 86°; V: 46°; D: 101°
Close Focus Distance 1 m (3.28 ft)
Aperture F1.6
Illuminator IR
Illuminator On/Off Control Auto; Manual
Illumination Distance 15m (49.21ft)
Illumination Angle 100°
Audio and Video
Video Compression H.265; H.264; H.264H; H.264B; MJPEG
Resolution Visible:
Main stream: 1080p (1920 × 1080); 720p (1280 × 720); D1 (704 × 576);
1920×1080 by default Sub stream: 720p (1280 × 720); D1 (704 × 576);
CIF (352 × 288); 352 × 288 by default
Video Frame Rate Visible:
Main stream: 1 fps–25 fps adjustable, 25 fps by default Sub stream:
1 fps–25 fps adjustable, 15 fps by default
Audio Compression G.711a; G.711mu; AAC; PCM
Image Encoding Format JPEG
Function
Two-way Audio Yes
Visible and Audible Alarm Yes
Network Protocol HTTPS; HTTP; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS;
DDNS; PPPOE; IPv4/v6; SNMP; QoS; UPnP; NTP
Interoperability ONVIF; GB/T28181; CGI;
Browser IE: IE 9 and later (Edge is not supported)
Chrome: 42 and earlier
Firefox: 42 and earlier
User / Host Up to 10 (total bandwidth: 100 MB)
Security Authorized username and password; attached MAC address;
encrypted HTTPS; IEEE 802.1x; controlled network access
Intelligence
Flame Detection Yes
Cold / Hot Spot Trace N/A
Port
Network Port 1 × RJ-45 (10/100 Base-T)
Alarm Input 1 channel
Alarm Output 1 channel
Alarm Linkage Relay output / Email / Snapshot
Alarm Event Local audible and visual alarm notification
Power
Power Supply 12 VDC ± 20%; PoE
Power Consumption Basic: 4.5 W (12 VDC, LED off)
Max.: 10.1 W (12 VDC, LED on, heat on)
Environment
Operating Temperature –20°C to +60°C (–4°F to +140°F)
Operating Humidity ≤ 95%
Storage Temperature –20°C to +70°C (–4°F to +158°F)
Construction
Protection IP66, anti-surge 2 kV; anti-electrostatic 6 kV ; anti-electrostatic 8 kV
Product Dimensions φ110mm × 88.6mm (φ4.33" × 3.49")
Net Weight –≤ 0.85 kg (1.87 lb)
Gross Weight ≤ 1 kg (2.20 lb)
Installation Ceiling/Pole/Wall mount

Brand

Spro
