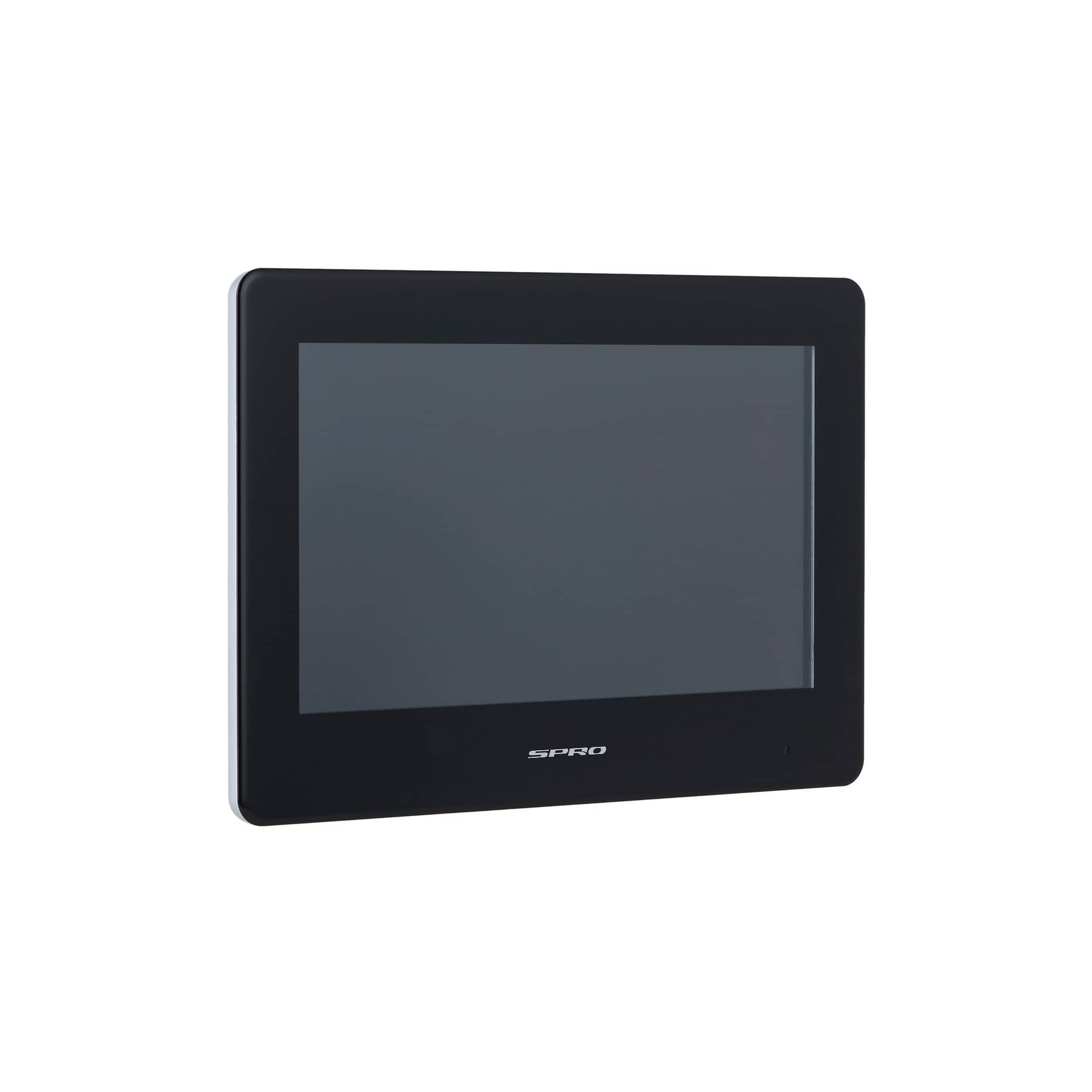

• 7″ TFT Capacitive touch screen, 1024×600
• IPC surveillance
• 6-channel alarm input and 1-channel alarm output
• Support standard PoE
Specifications: | |
Model Number | VI-MTR03-B |
Main Processor | Embedded processor |
Operating System | Embedded Linux operating system |
Interoperability | ONVIF; SDK |
Network Protocol | RTSP; RTP; SIP; DNS; SSH |
ROM | 128 MB |
RAM | 128 MB |
CPU | Dual core 1.2 GHz |
Basic | |
Screen Type | Capacitive Touchscreen |
Display | 7”TFT |
Screen Resolution | 1024x600 |
Audio Compression | G.711a; G.711u; PCM |
Audio Input | 1 |
Audio Output | Built-in speaker |
Audio Mode | 2-way Audio |
Audio Enhancement | Echo suppression |
Audio Bit Rate | 16kHz; 16 Bit |
Funcion | |
Communication Mode | Full digital |
Information Release | Receive and view text information released by the |
management center | |
DND Mode | Do not disturb period can be set; Do not disturb mode |
Number of Extensions | Villa: 9 |
Apartment: 4 | |
Wi-Fi intercom: 1 main monitor, 2 extension monitors | |
Wi-Fi | Yes |
Wireless Standard | IEEE802.11b/802.11g/802.11n |
Wireless Frequency Range | 2.4 GHz |
Wireless Security Encryption | WPA/WPA2; WPA-PSK/WPA2-PSK |
Performance | |
Casing | PC + ABS |
Port | |
Alarm Input | 6 |
alarm Output | 1 |
Door Bell | Yes (use any alarm input port) |
Network | One 10 Mbps/100 Mbps Ethernet |
General | |
Appearance Colour | Black |
Power Supply | 12 VDC 1A; Standard PoE (36–57 V, 0.35 A) |
Installation | Surface Mount |
Certifications | CE; FCC |
Dimensions | 189.6 mm × 134.6 mm × 26.0 mm (7.50" × 5.30" × 1.00") |
Operating Temperature | –10 °C to +55 °C (+14 °F to 131 °F) |
Operating Humidity | 10%–95% RH (non-condensing) |
Operating Altitude | Beneath 3,000 m (9,842.52 ft) |
Power Consumption | Standby ≤ 2W; working ≤ 6W |
Net Weight | 0.34 kg (0.74 lb) |
Gross Weight | 0.58 kg (1.27 lb) |
