Wireless Bridge – 2KM Wireless Receiver

Description

CDS-6IPeco

Easy to set up Wireless CCTV Video Bridge.

CDS-6IPeco is an extremely easy-to-set-up, wireless transmission system designed to transmit audio/video in the 5,6 GHz frequency band with 500 mW (EIRP 27dBi). The device is designed for high-resolution signal transmission from IP cameras (up to 10 Mpix – 4K UHD). The system is designed for use in simpler, low-cost systems.

A special system with protocols for the transmission of HD video and 4K
CDS-6IPeco is not a computer device to transmit the Internet but a transmitter for continuous and uninterrupted transmission of heavy HD images. Implemented special protocols for audio/video provide broadcasts of all the frames HD and 4k with no delay in transmission. In addition to the simultaneous transmission of multiple images and sounds allows you to control PTZ cameras and the data transfer between the recorder and cameras.

.

Built-in dual antenna 5,6 GHz MIMO 2 x 14 dBi allows signal transmission up to 2 km as standard, and access to the fine-tuning function of the antenna guarantees high transmission quality even at different distances.

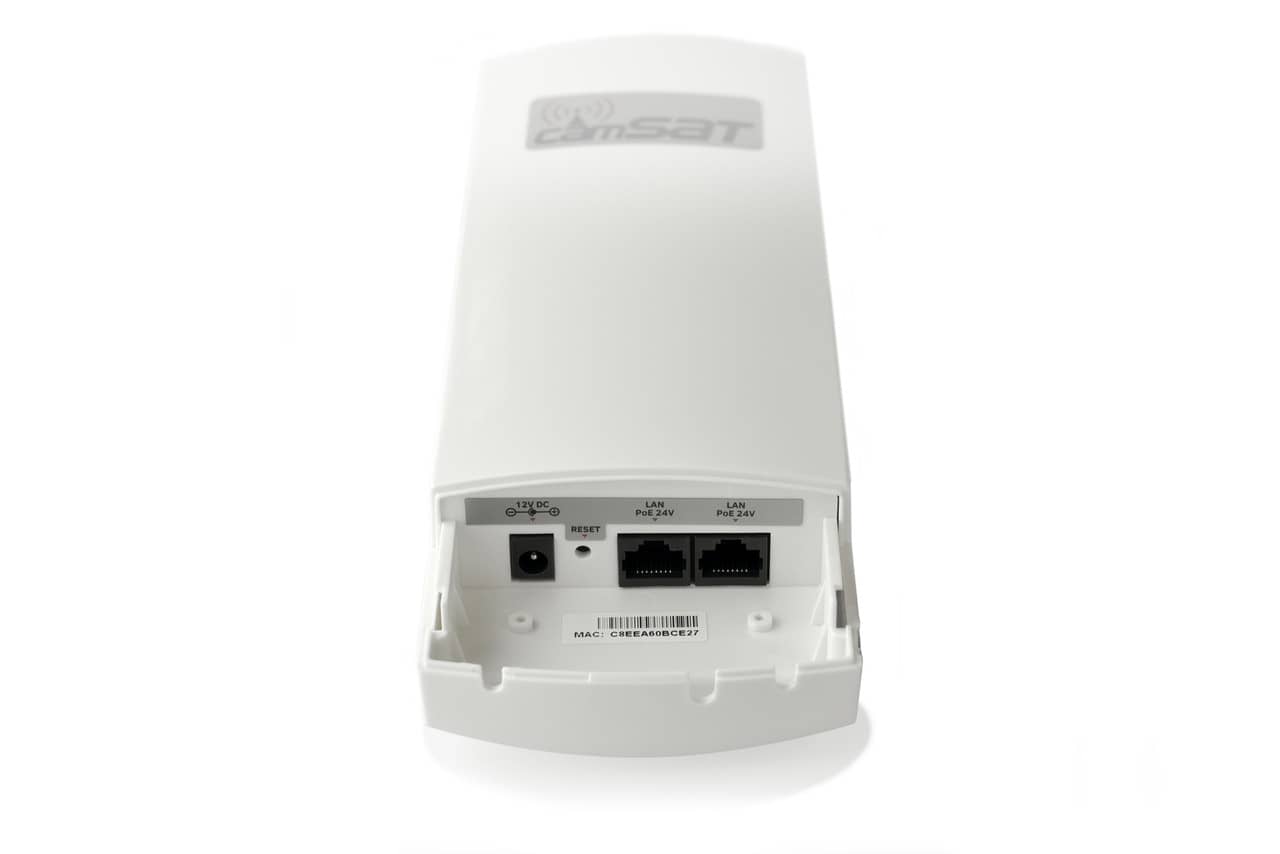

The CDS-6IPeco has two ports for two IP cameras. The number of cameras can be expanded to 4 on one transmitter by using a switch. Additionally, for each receiver, up to 4 transmitters can be assigned.

Intuitive configuration

CDS-6IPeco, using special communication protocols iCAMSAT-OS, can provide a stable, reliable and efficient transmission.

The system provides ease of configuration, so it is recommended even for people with no experience in IP CCTV. It has very intuitive and simple software that contains only the necessary functions to define. Just set only 2 parameters (IP address and operating channel) to get a radio connection. In addition, the software includes an intuitive icon-type HELP which contains the necessary information on how to configure the device.

Universal application

User Control Panel is also adapted for use with mobile phones and tablets. This allows remote management on selected models of phones and tablets.

CCTV System CDS-6IPeco is a VIDEO BRIDGE and provides a highly stable transmission method for IP CCTV systems.

CDS-6IPeco also allows you to work in a MASTER / SLAVE, which allows for flexible configuration of the device and mode selection most suited to your own system. Configured individual user profiles can be saved to a file and, if necessary, again used, allowing the user or installer to express configure.

User Control Panel is also adapted for mobile phones and smart tablets. This allows remote viewing of signal/image on selected models of phones and tablets.

CCTV System CDS-6IPeco has a recommended system VIDEO BRIDGE, which provides a high-stability transmission method for IP CCTV systems.

CDS-6IPeco also allows you to work in a MASTER / SLAVE, which allows for flexible configuration of the device.

Brand

CamSat
